Products

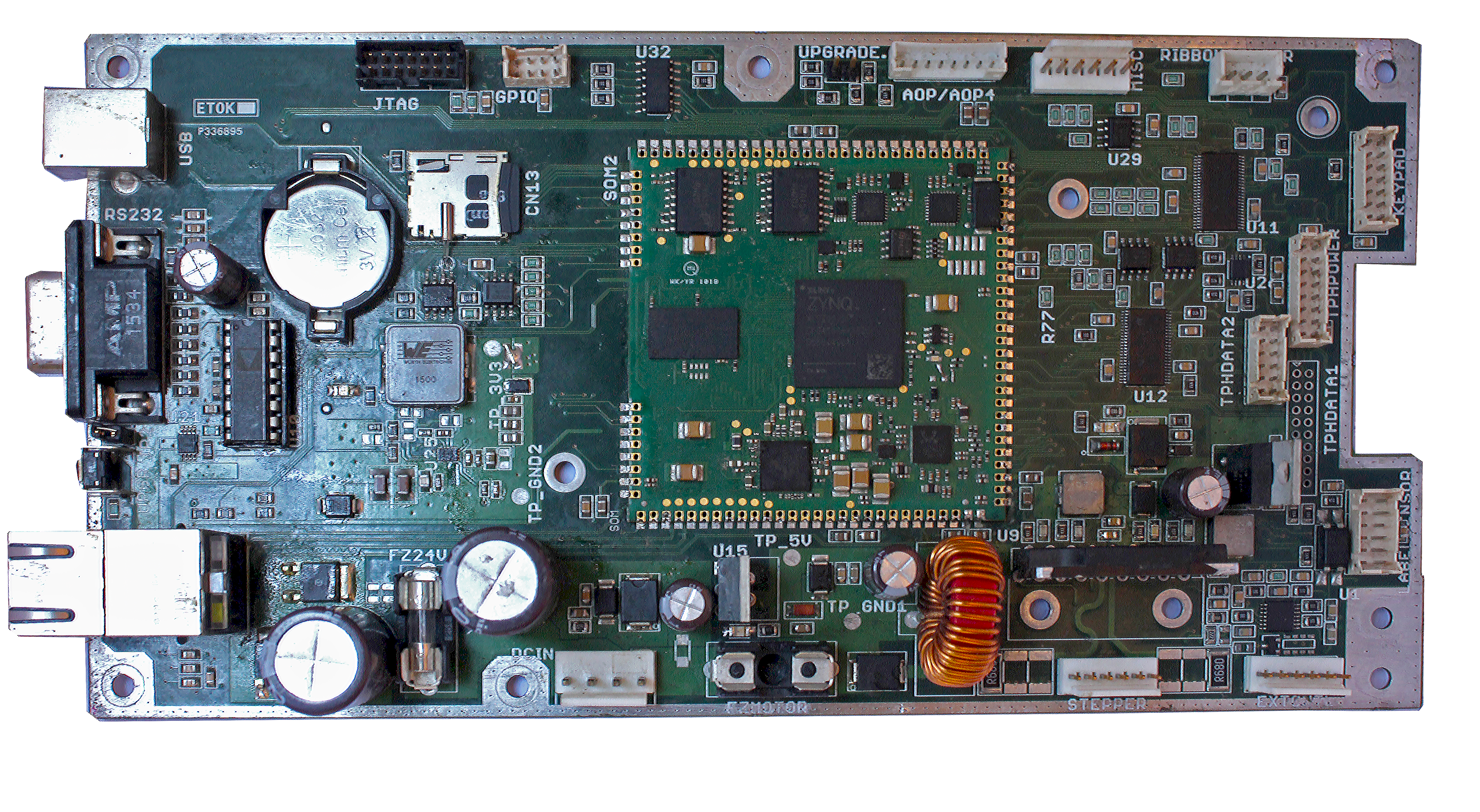

3CO CA

3CO-CA product caters to comprehensive gateway and data logger applications

Features

  • 12V-24V, 2.5A Power Supply
  • Xilinx Zynq Series FPGA (7Z007S, 7Z010, 7Z014S, 7Z020)
  • DDR3 1GB
  • QSPI NOR Flash 128Mb
  • I2C EEPROM
  • eMMC SD Card Interface
  • On board Wi-Fi (802.11 a, b, g, n)
  • 10/100/1000 Ethernet
  • USB 2.0 Host
  • RS-485, CAN, RS232 and USB to UART Bridge Interface
  • 8 Digital Inputs (3.3/5/12/24V)
  • 8 Digital Outputs (3.3/5/12/24V)
  • 5 PWM Outputs (5V), 4 Relays 230V-5A
  • 2 4-20mA Inputs
  • 2 0-10V Inputs
  • Functional Test firmware with Customization on Demand

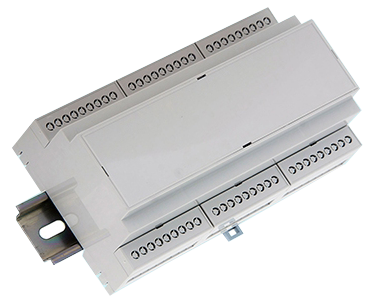

3CO SA

3CO-SA product caters to gateway and data logger applications at optimum costs

Features

  • 12V-24V, 2A Input Power Supply
  • GSM Connectivity
  • eMMC SD card Interface
  • 10/100/1000 Ethernet RJ45 Connectivity
  • 6 Digital Inputs (3.3/5/12/24V)
  • 6 Sensor Inputs (Configurable on demand)
  • 1 4-20mA Input
  • 1 0-10V Input
  • RS485 Interface
  • CAN Interface
  • Functional Test firmware with Customization on Demand




















                              ;






3CO-WA

3CO-WA Wireless node provides sensing capability at long LoS (Line of Sight) Communication

Features

  • Battery Powered, 3.3V
  • ISM Band 865MHz Operation
  • Long Range Operation up to 200 meters to 1Km
  • Temperature, Humidity, Light, Proximity Sensing-Configurable Options
  • Modular Design in Space Saving Enclosure
  • Low Cost and Customizable for Different Applications

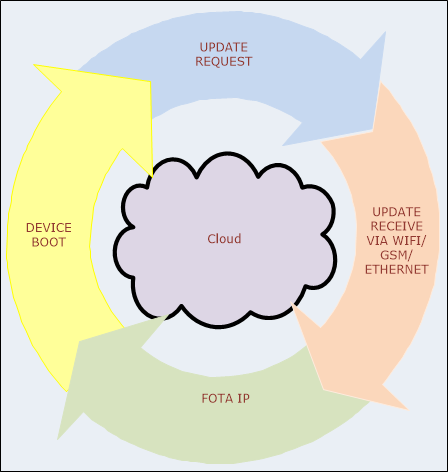

3CO-FWOTA

This facilitates remote firmware update for a micro controller via external interfaces like W-Fi, Ethernet, GSM, SUB-GHz modems.

Features

  • Interface Select can be Wi-Fi, Ethernet , GSM or Sub-GHz
  • No need of additional hardware
  • Easy to Integrate
  • Modular customizable design
